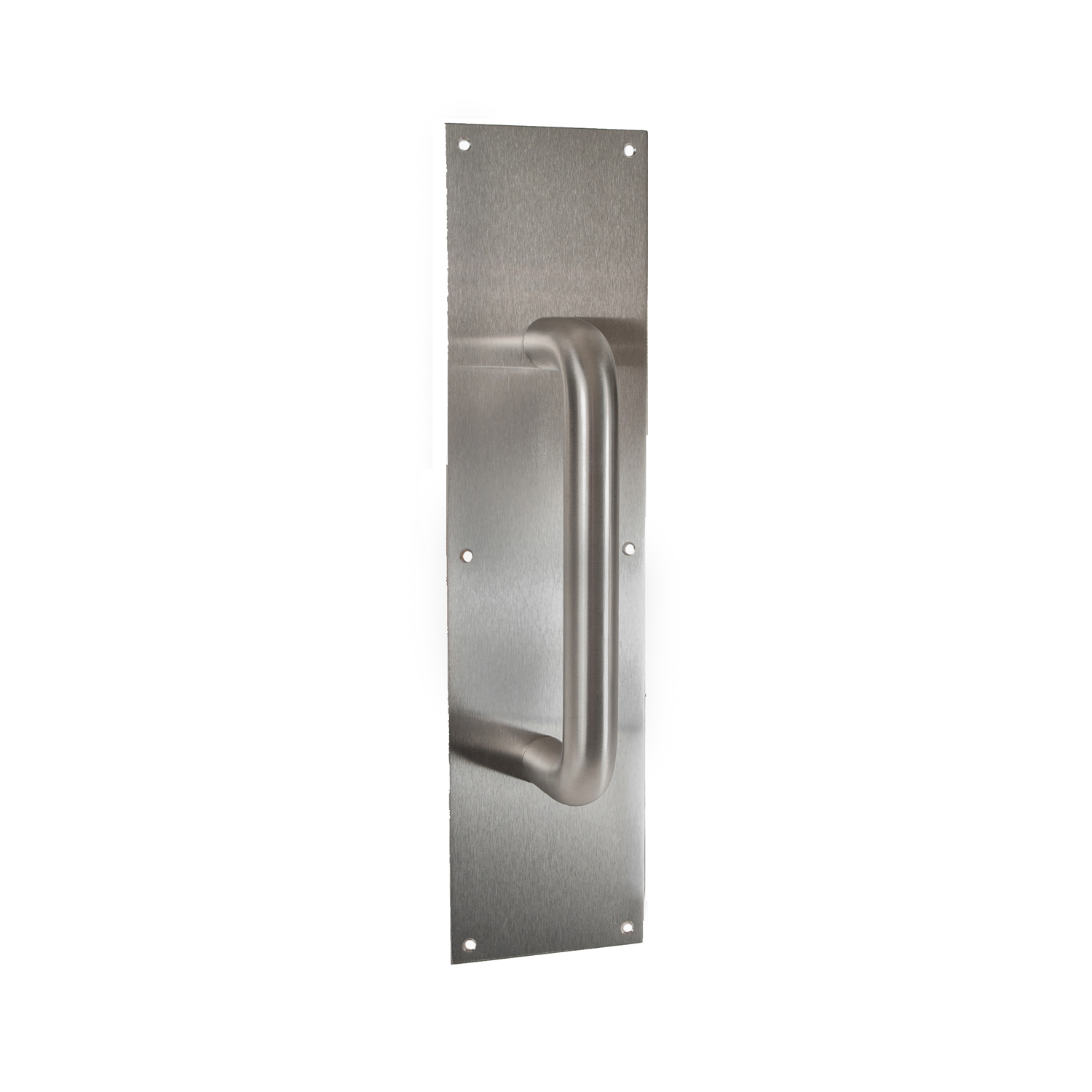

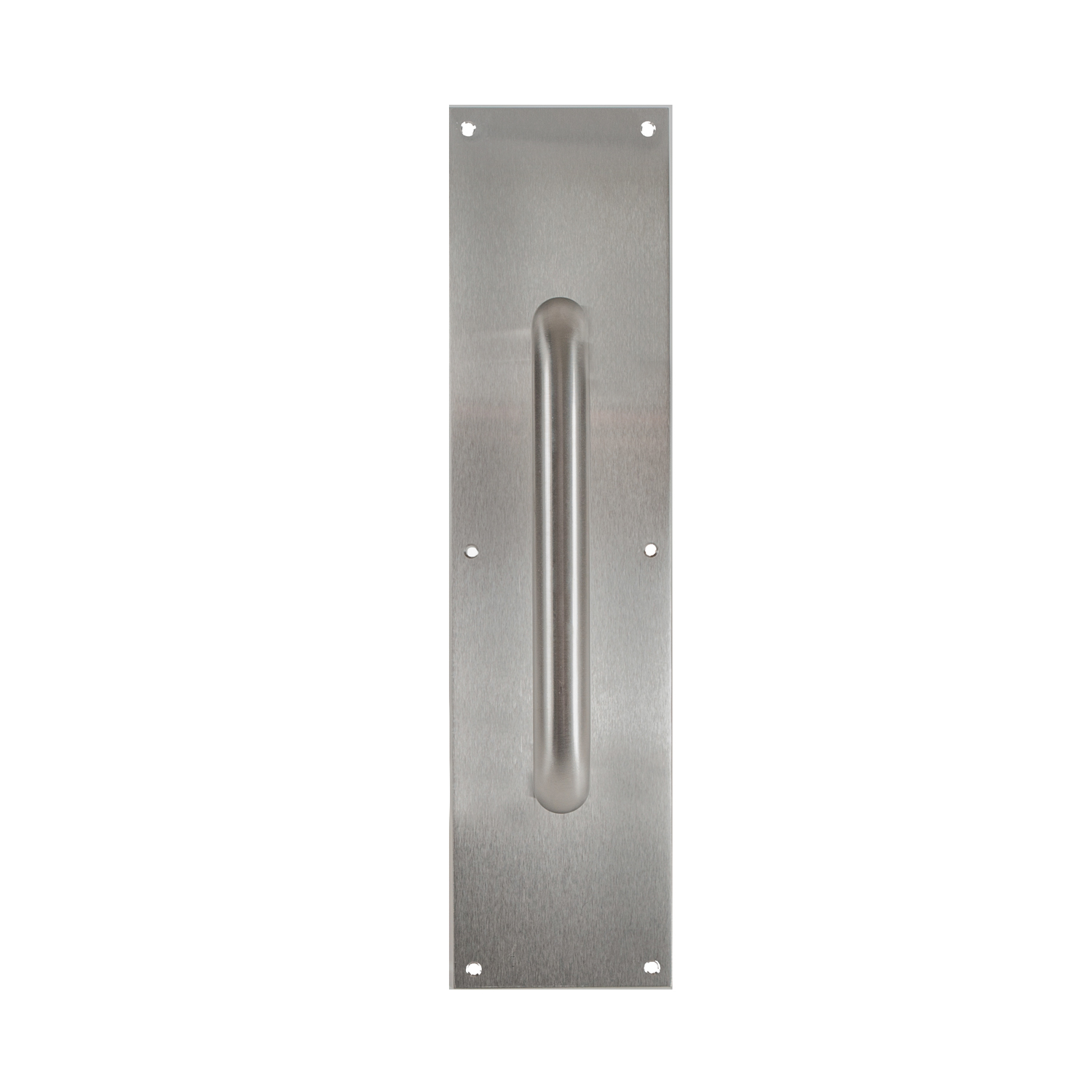

1018 Series 1″ Dia. Pull Plates

1018 Series 1″ Dia. Pull Plates

The Trimco 1018 Series Pull Plates combine the 1001 Series Plate with an 1195 Series Grip. These ADA compliant pull plates are available in 3-1/2″x15″ and 4″x16″ standard plate sizes and are mated with either an 8″ or 10″ CTC, 1″ dia. straight pull. Custom plate sizes and finishes are also available.

  • Healthy Hardware

  • Combines 1001 Series Plate with an 1195 Series Grip.
  • Plates are made of heavy duty .050" stainless steel, brass or bronze and are pencil beveled on all four sides.
  • ADA compliant 1" dia. straight pull with either 8" or 10" CTC.
  • Standard plate sizes include 3-1/2"x15" and 4"x16". Custom sizes and finishes also available.

  • 1018-2 3-1/2" x 15", 8" CTC, 1" Dia. Pull
  • 1018-2B 3-1/2" x 15", 10" CTC, 1" Dia. Pull
  • 1018-3 4" x 16", 8" CTC, 1" Dia. Pull
  • 1018-3B 4" x 16", 10" CTC, 1" Dia. Pull

  • 606 Satin Brass, Clear Coated
  • 612 Satin Bronze, Clear Coated
  • 613 Dark Oxidized Satin Bronze, Oil Rubbed
  • 628 Satin Aluminum, Clear Anodized
  • 629 Polished Stainless Steel
  • 630 Satin Stainless Steel
  • 706CU Sterose – CuVerro Alloy (upon request)
  • 710CU Steralloy – CuVerro Alloy (standard)

  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Hospitality
  • Multifamily & Mixed-Use
  • Retail & Strip Malls

  • LeedBHMAADA
