1015 Series Bar Style Pull Plates

1015 Series Bar Style Pull Plates

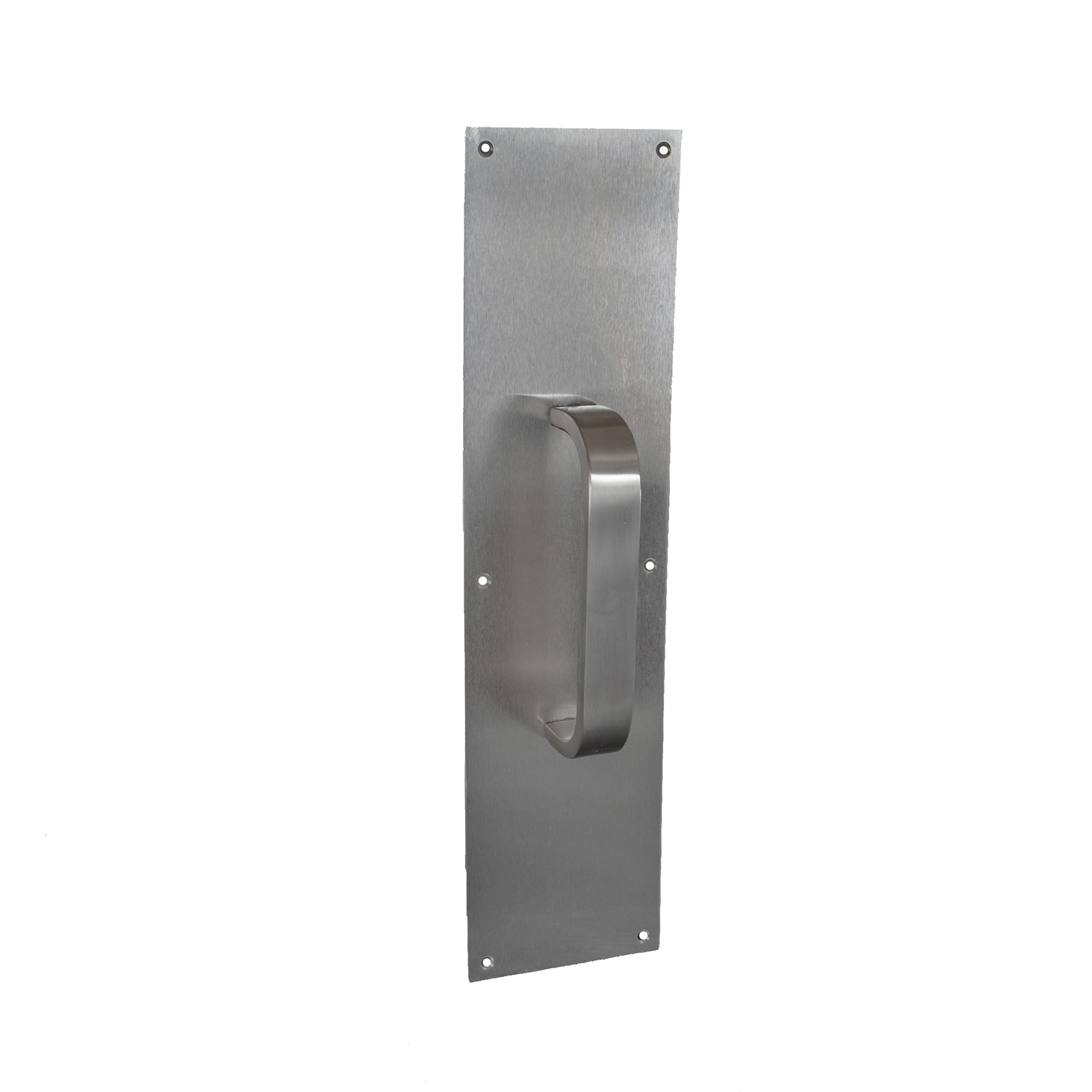

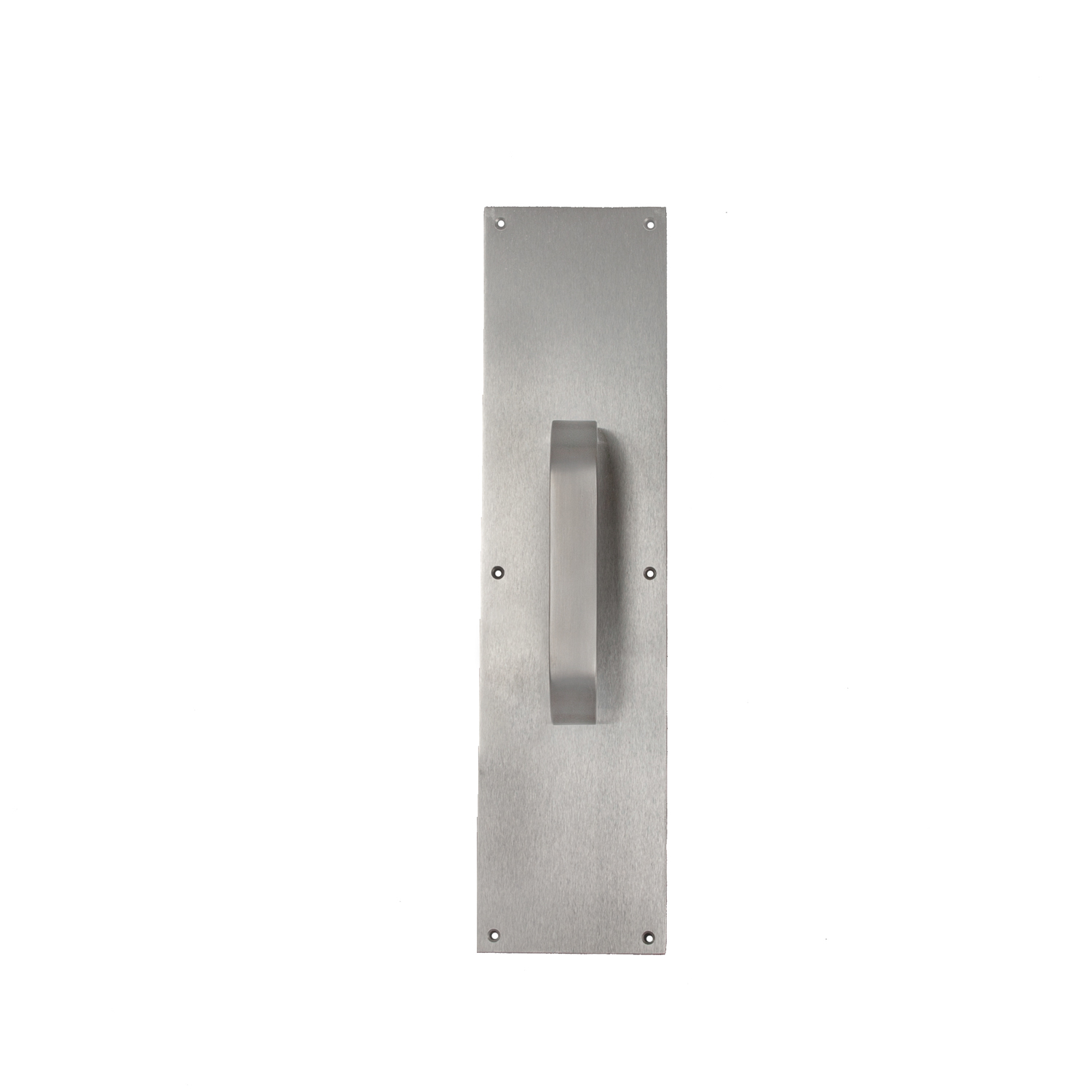

The Trimco 1015 Series Pull Plates combine the 1001 Series Plate with an 1139 Series Grip. These ADA compliant pull plates are available in 3-1/2″x15″ and 4″x16″ standard plate sizes and are mated with either a 6″ or 8″ CTC, 1″x3/8″ bar, straight pull. Custom plate sizes and finishes are also available.

  • Healthy Hardware

  • Combines 1001 Series Plate with an 1139 Series Grip.
  • Plates are made of heavy duty .050" stainless steel, brass or bronze and are pencil beveled on all four sides.
  • ADA compliant 1"x3/8" bar straight pull with either 6" or 8" CTC.
  • Standard plate sizes include 3-1/2"x15" and 4"x16". Custom sizes and finishes also available.

  • 1015-2 3-1/2" x 15", 6" CTC, Bar Pull
  • 1015-2B 3-1/2" x 15", 8" CTC, Bar Pull
  • 1015-3 4" x 16", 6" CTC, Bar Pull
  • 1015-3B 4" x 16", 8" CTC, Bar Pull

  • 606 Satin Brass, Clear Coated
  • 612 Satin Bronze, Clear Coated
  • 613 Dark Oxidized Satin Bronze, Oil Rubbed
  • 629 Polished Stainless Steel
  • 630 Satin Stainless Steel
  • 710CU Steralloy – CuVerro Alloy (standard)
  • 706CU Sterose – CuVerro Alloy (upon request)

  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Hospitality
  • Multifamily & Mixed-Use
  • Retail & Strip Malls

  • LeedBHMAADA
