1066/1067/1068 Drop-Ring Flush Pulls

1066/1067/1068 Drop-Ring Flush Pulls

A series of low-profile, surface-mounted, drop-ring pulls to operate mortise locks generally from the inside of the door. Typical applications are handball courts, research facilities, adjoining rooms, etc. Ring handle is securely attached to half-spindles. Multiple spindle sizes and orientations enable mating to most mortise locks.

  • Healthy Hardware

  • Standard sizes are 9/32", 5/16" & 3/8". Inquire about other sizes.
  • Spindle can be installed on the square or on the diamond. Easily changed in the field.
  • All styles are cast in brass or bronze and plated to all standard architectural finishes.
  • Can be adapted to most mortise locks and latches with split spindle operation.
  • Non-handed – bolts to door with surface fasteners.
  • Can be custom-made back-to-back mounted.
  • Dummy units are available where no latches are used.

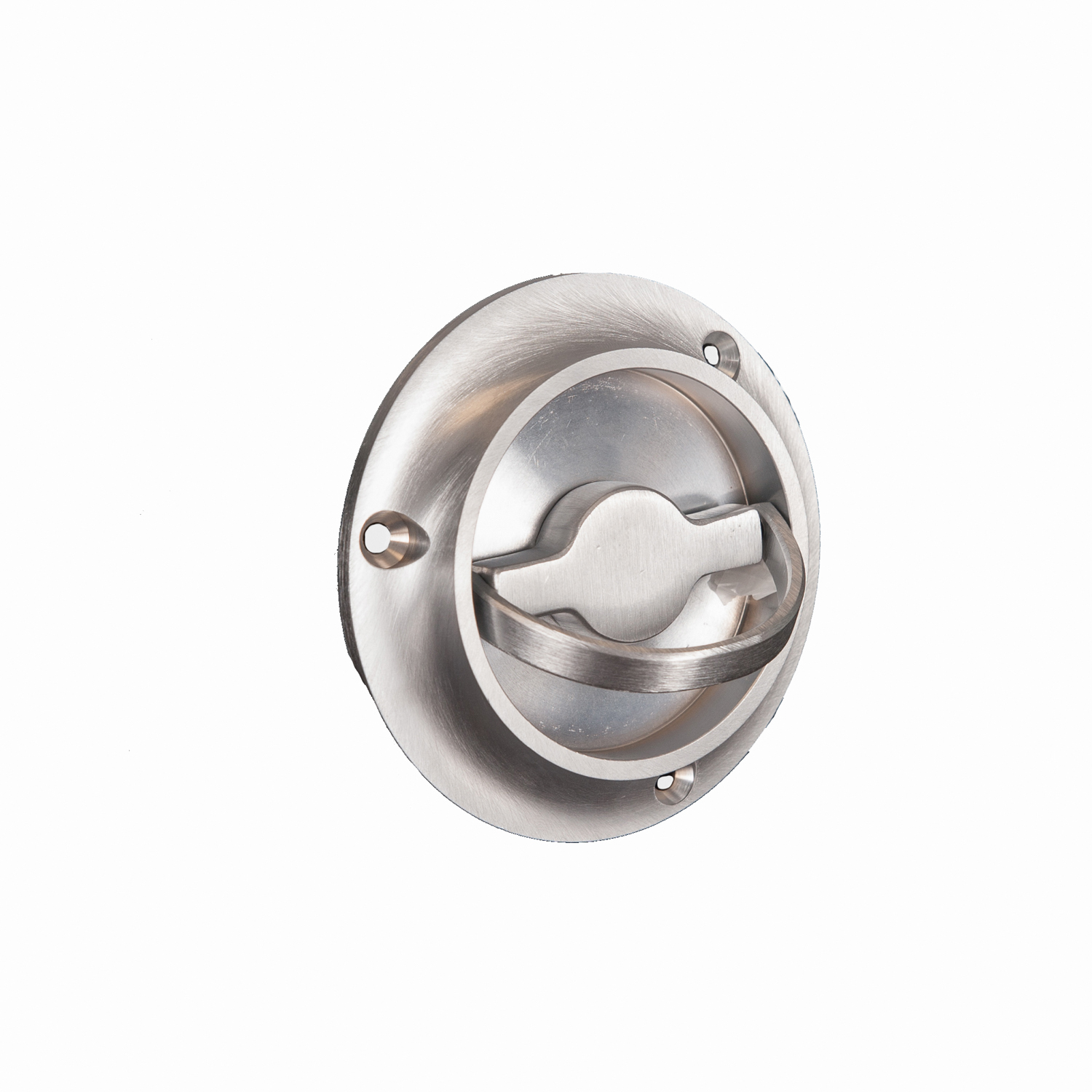

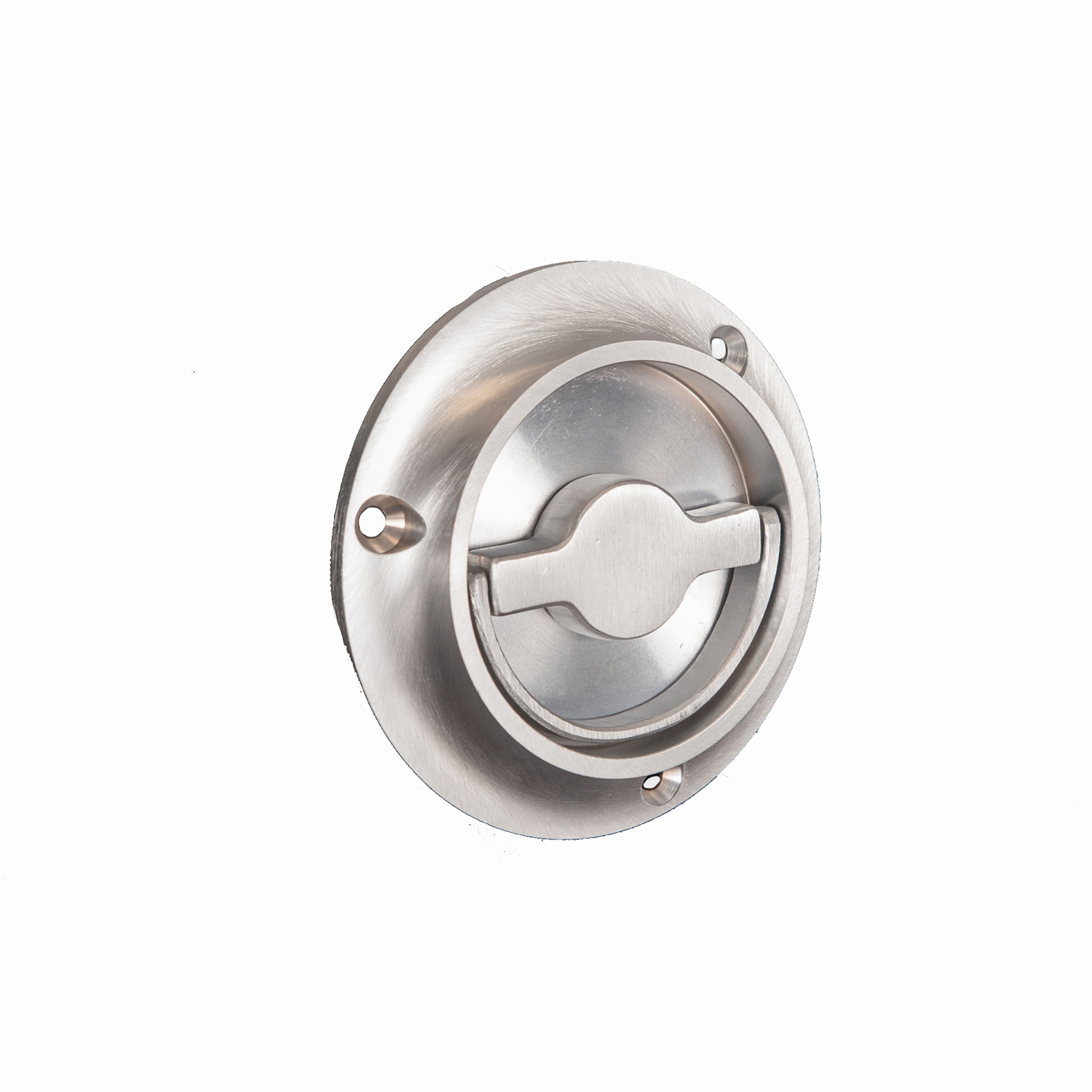

  • 1066S Drop-Ring Pull, Round, 9/32" Square Spindle
  • 1066S-516 Drop-Ring Pull, Round, 5/16" Square Spindle
  • 1066S-38 Drop-Ring Pull, Round, 3/8" Square Spindle
  • 1066S-Dummy Drop-Ring Pull, Round Dummy

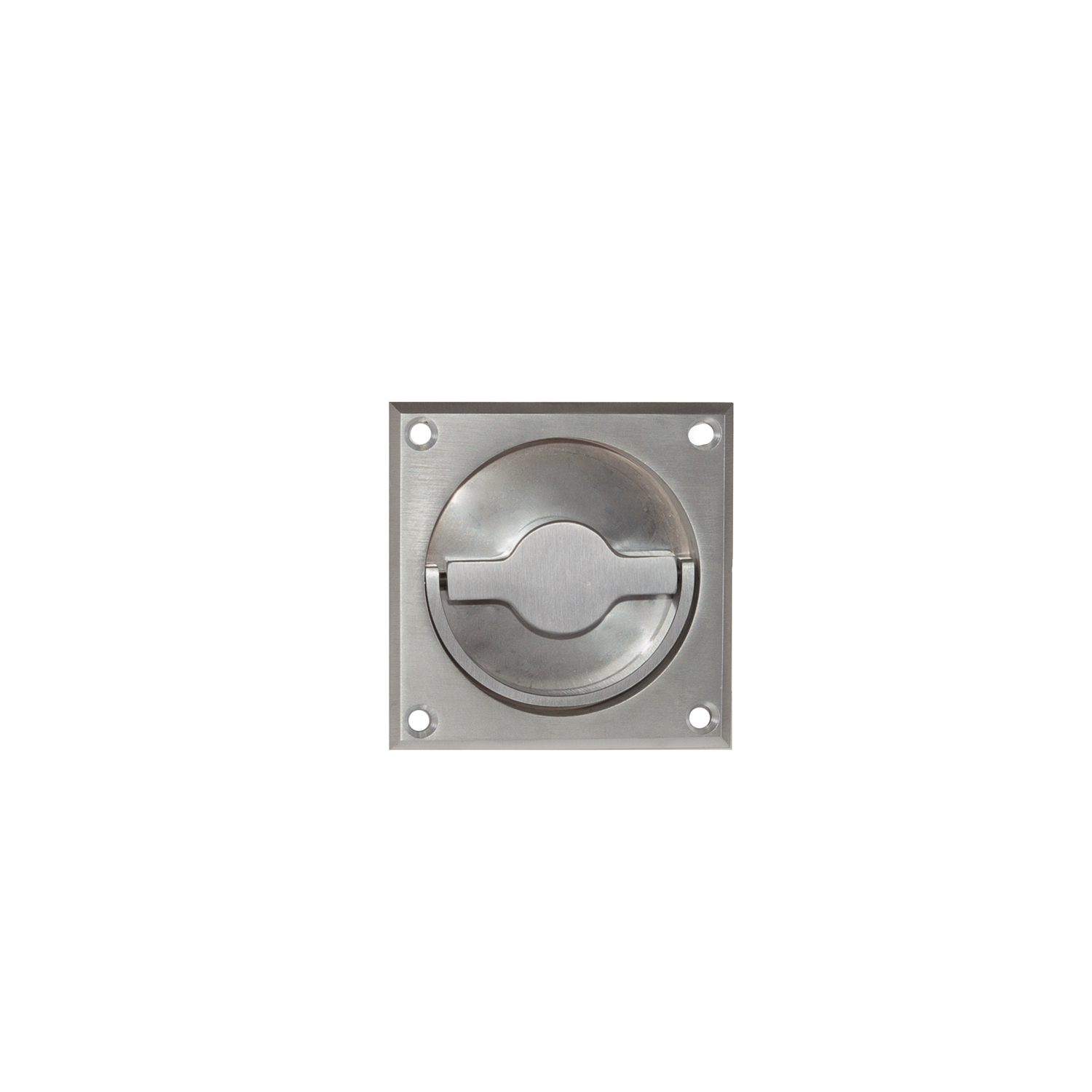

  • 1067 Drop-Ring Flush Pull, Square, 9/32" Square Spindle
  • 1067-516 Drop-Ring Flush Pull, Square, 5/16" Square Spindle
  • 1067-38 Drop-Ring Flush Pull, Square, 3/8" Square Spindle
  • 1067-Dummy Drop-Ring Flush Pull, Square, Dummy
  • 1068 Drop-Ring Flush Pull, Round, 9/32" Square Spindle
  • 1068-516 Drop-Ring Flush Pull, Round, 5/16" Square Spindle
  • 1068-38 Drop-Ring Flush Pull, Round, 3/8" Square Spindle
  • 1068-Dummy Drop-Ring Flush Pull, Round, Dummy

  • 606 Satin Brass, Clear Coated
  • 612 Satin Bronze, Clear Coated
  • 613 Dark Oxidized Satin Bronze, Oil Rubbed
  • 625 Bright Chrome Plated
  • 626 Satin Chrome Plated
