1283 Series Adjustre Stops & Holders

1283 Series Adjustre Stops & Holders

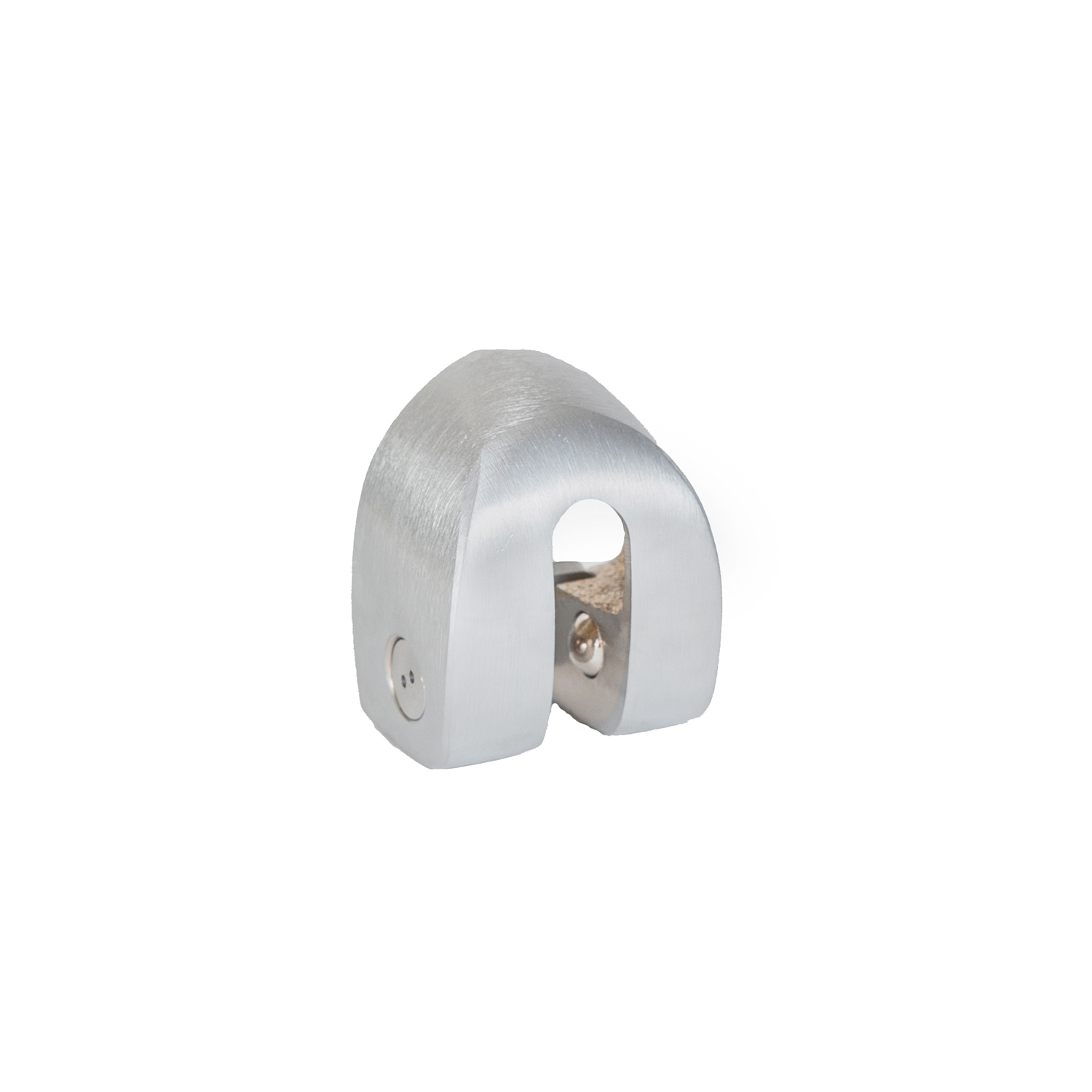

The patented Trimco 1283 Adjustre Series is the only self-adjusting door holder manufactured. With a strike made of solid brass or bronze and featuring spring-loaded ball bearings allowing for tension adjustability. These unique stops and holders are self-adjusting to compensate for up to 1/2″ of vertical door sag. Multiple options for floor and wall strikes are also available as well as a lockable version for use with a padlock (i.e. school gymnasium).

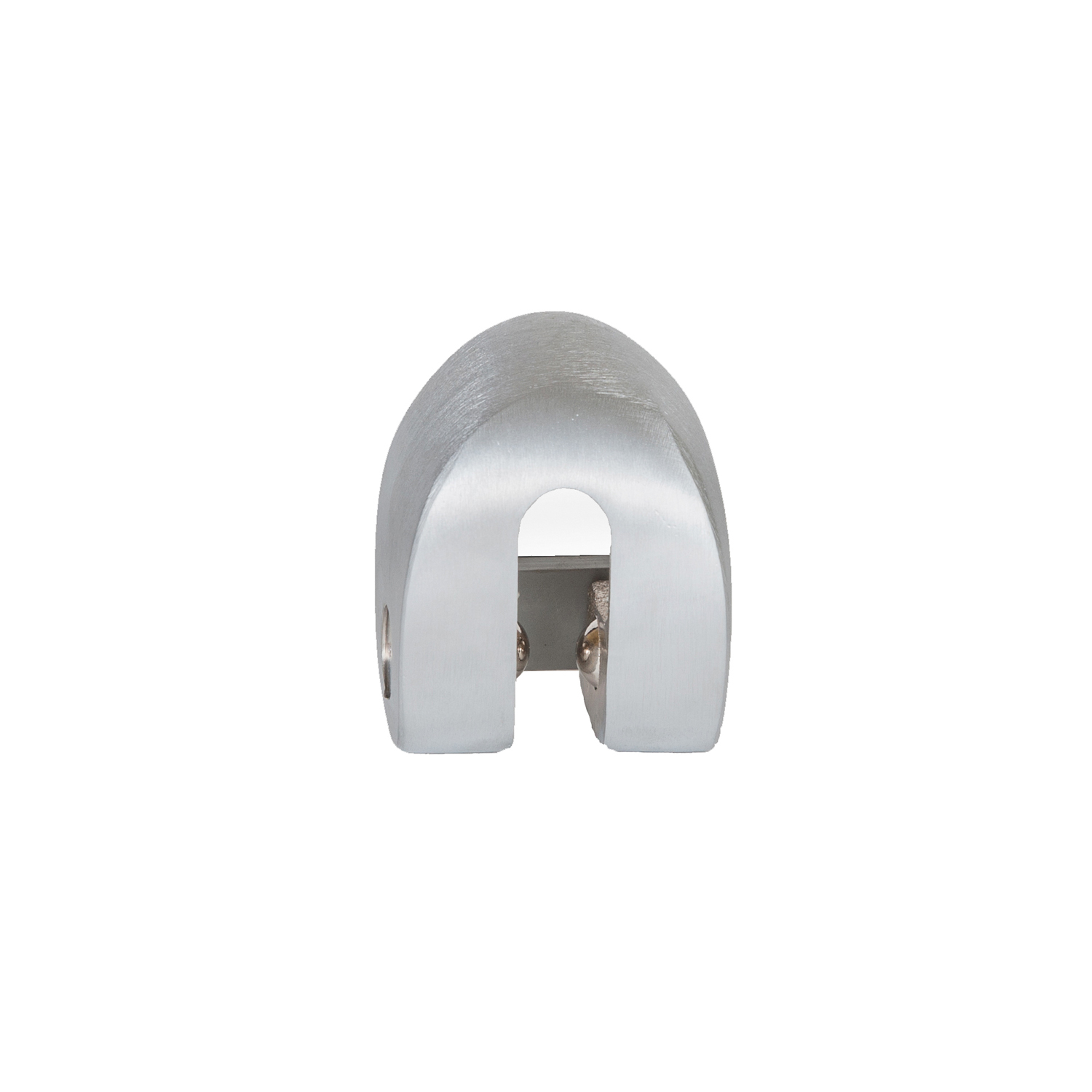

  • Strike is gripped by hardened ½" diameter ball bearings.
  • Self-adjusting for door sag up to ½".
  • Gripping tension is adjustable with easy-to-reach security screws.
  • Rugged thru-bolt attachment from back side of door.
  • Concealed tamper-proof rubber cushion.

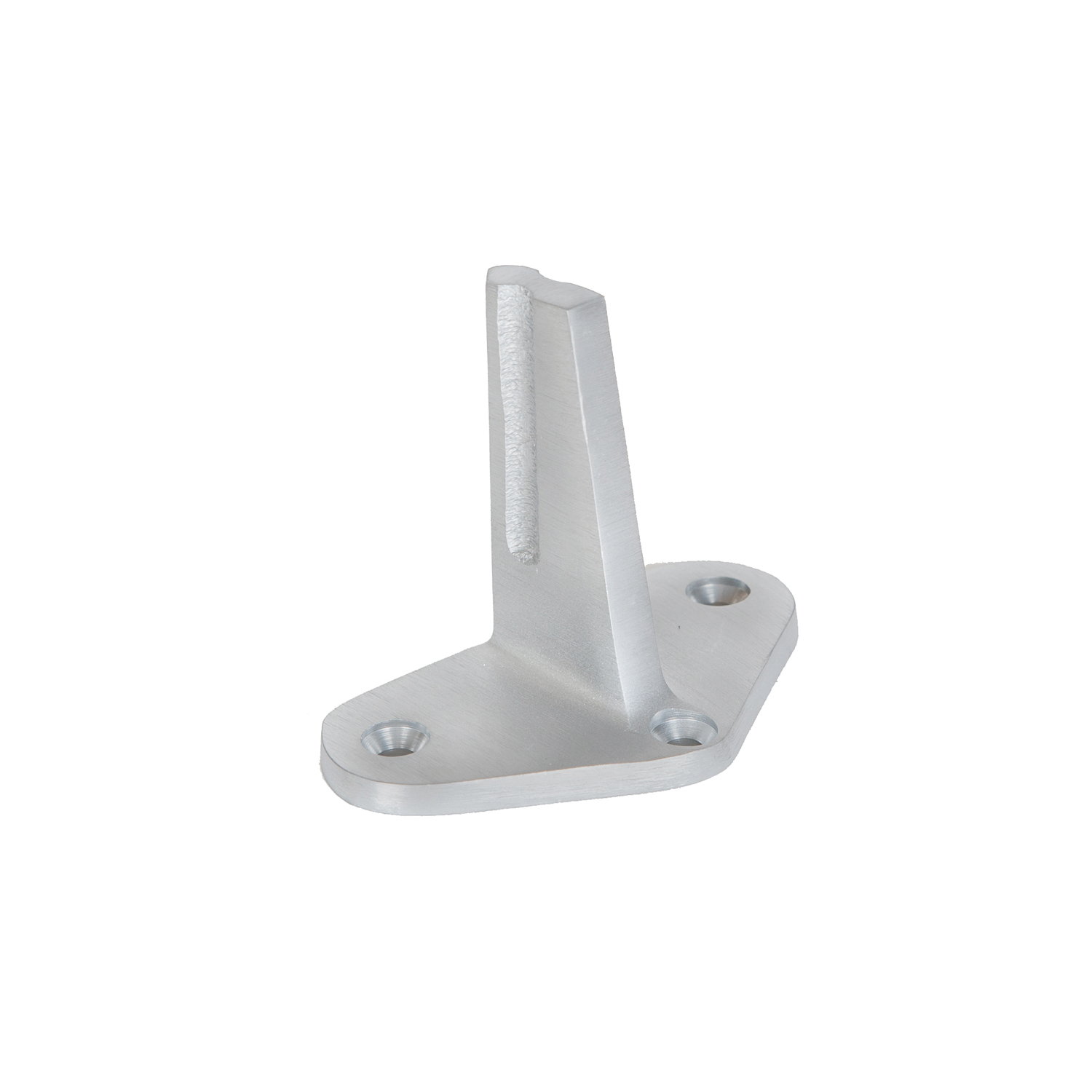

  • Variety of strikes available: standard and custom height floor strikes rigid and adjustable wall strikes.
  • 1283LS is designed for use with a padlock to lock the door in the open position.

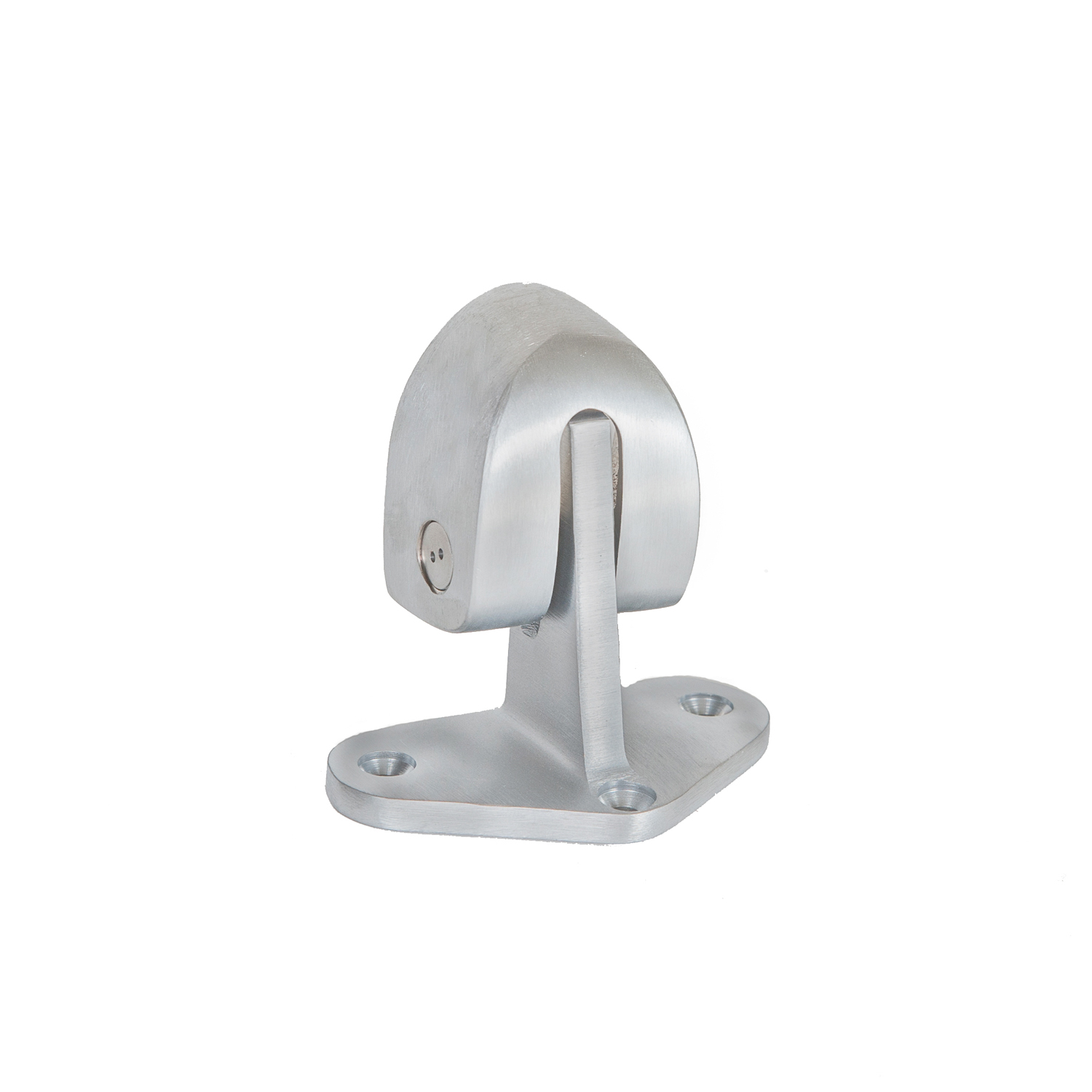

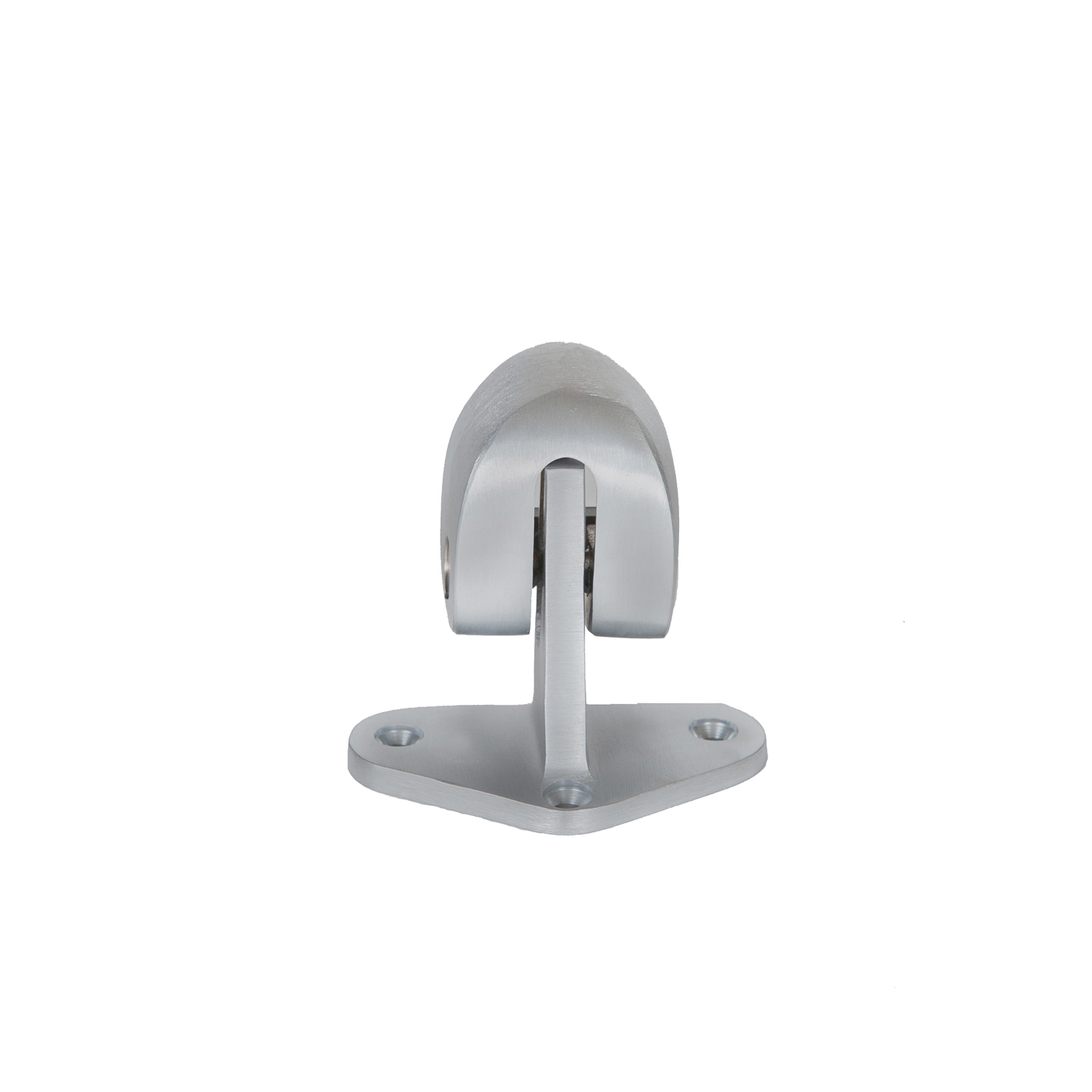

  • 1283-2S - Adjustre Floor Stop & Holder

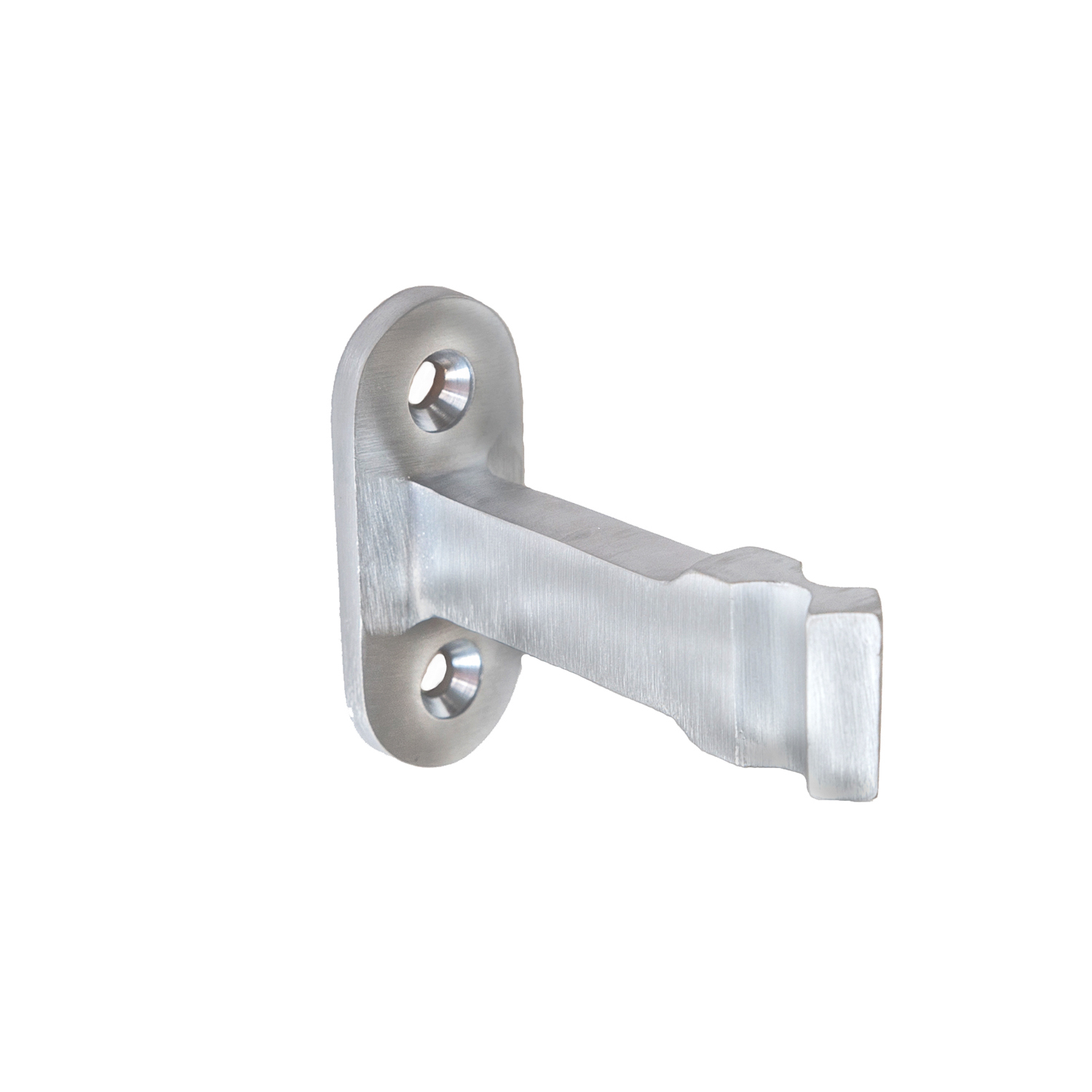

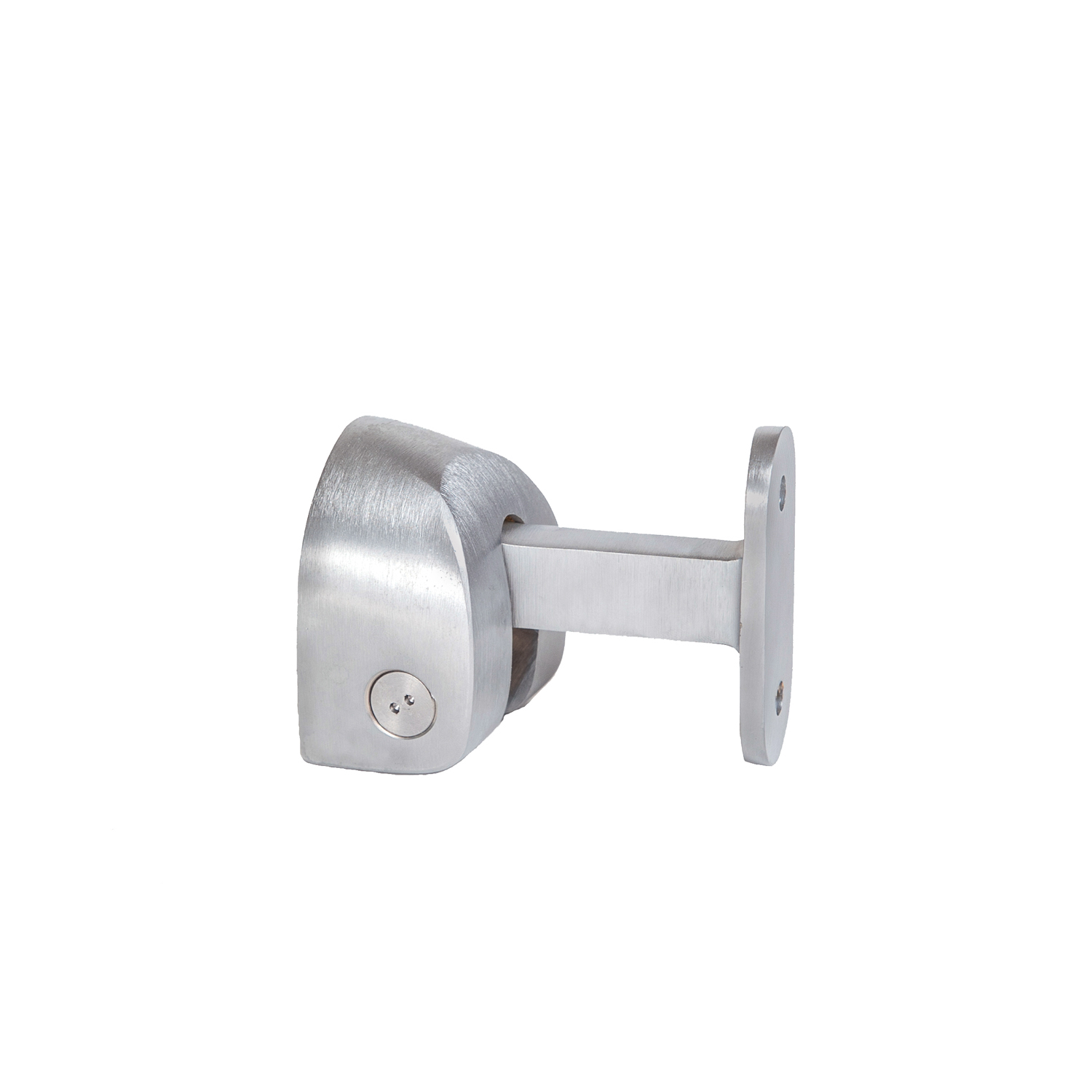

  • 1283-4S - Adjustre Wall Stop & Holder Wall Strike

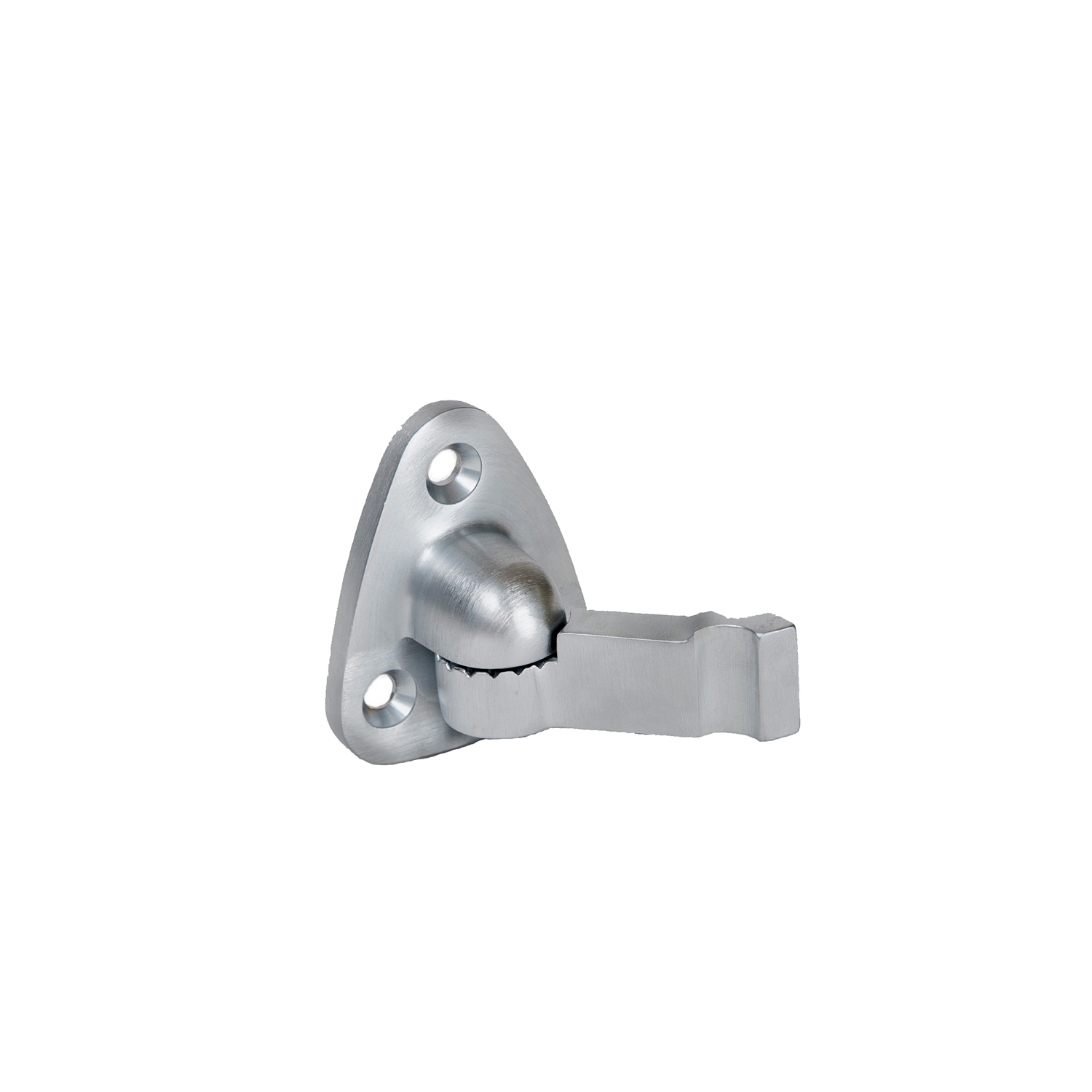

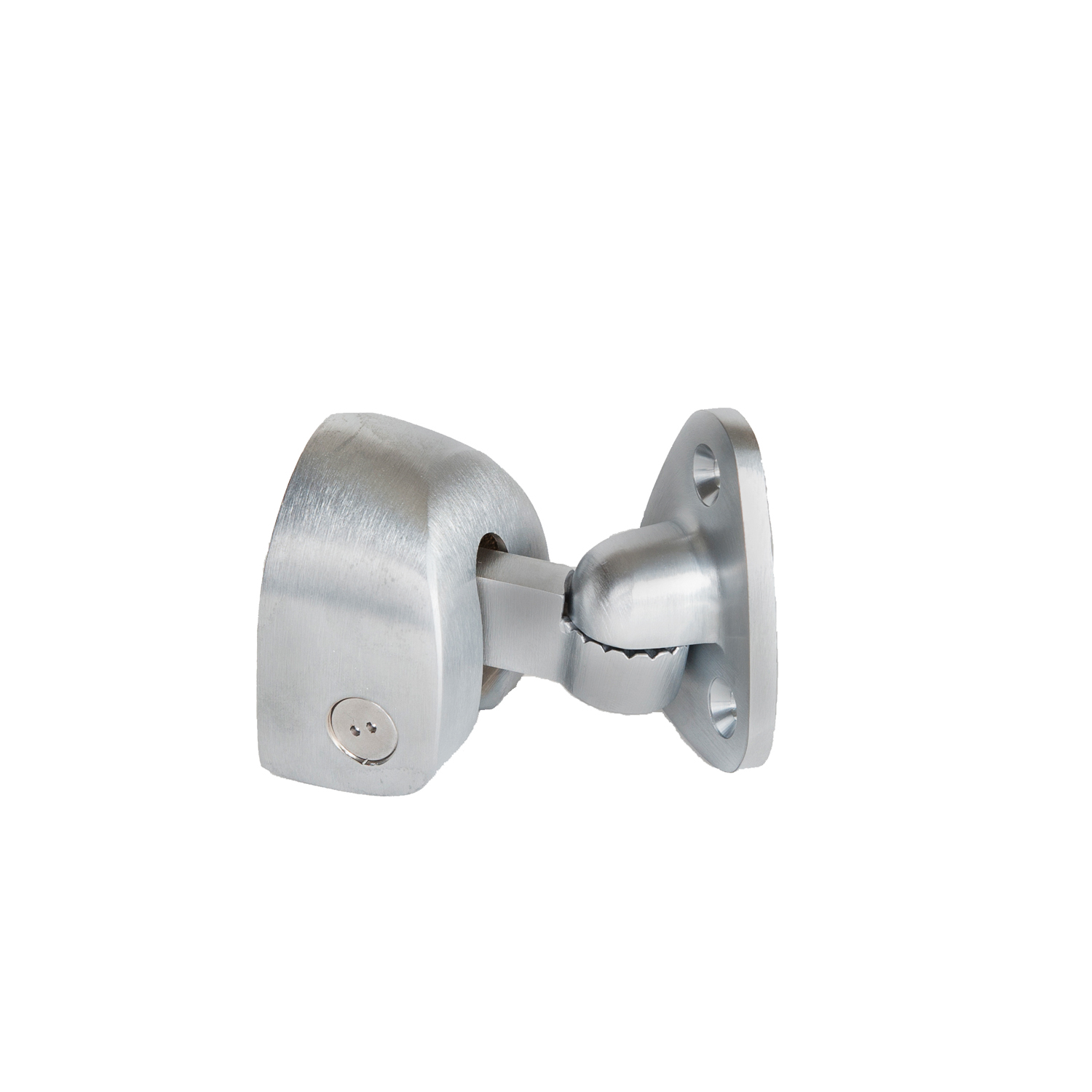

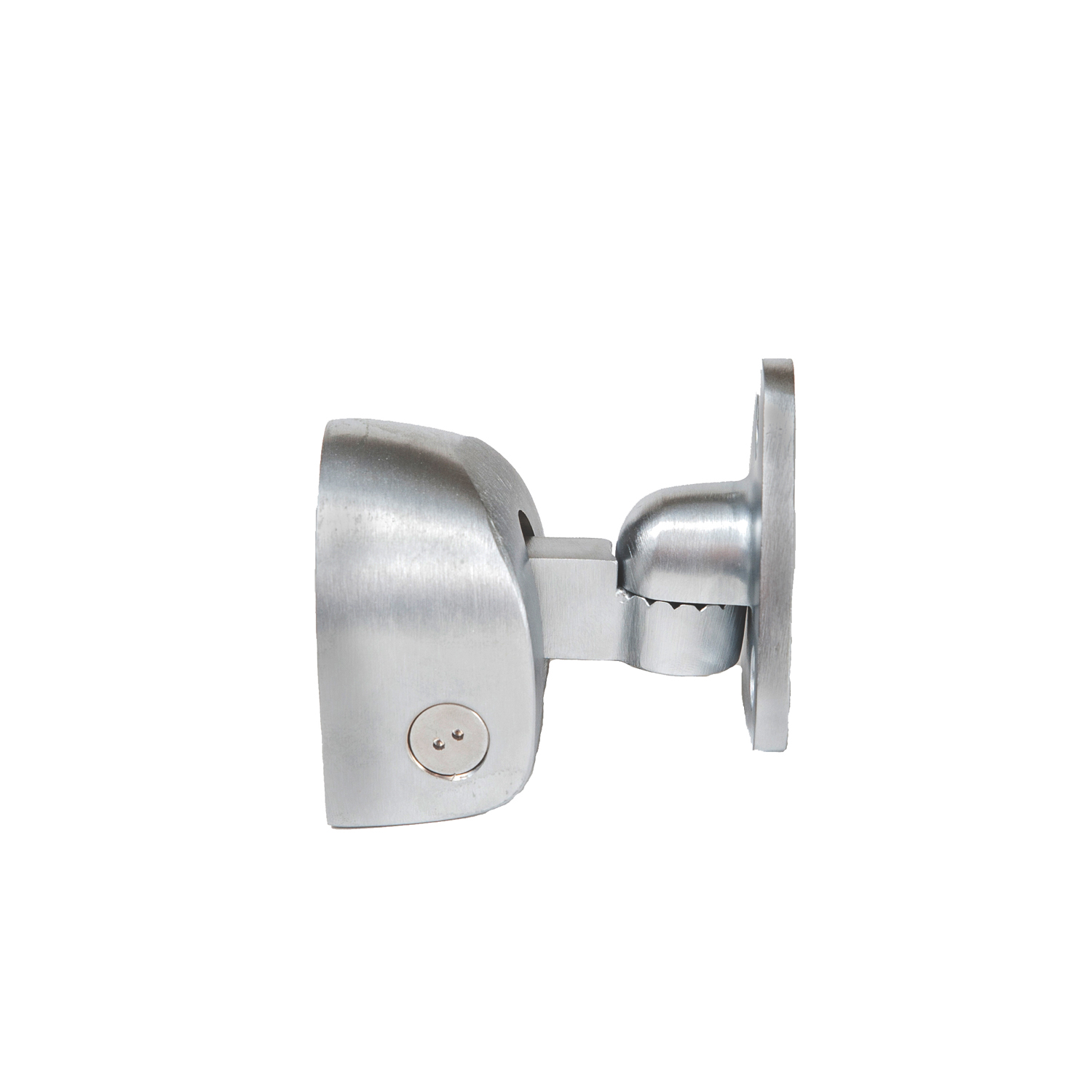

  • 1283-6S - Adjustre Wall Stop & Holder Adjustable Wall Strike
  • 1283LS - Adjustre Floor Stop & Holder Lockable

  • 606 Satin Brass, Clear Coated
  • 609 Satin Brass, Blackened, Satin Relieved, Clear Coated
  • 610 Satin Brass, Blackened, Bright Relieved, Clear Coated
  • 611 Polished Bronze, Clear Coated
  • 612 Satin Bronze, Clear Coated
  • 613 Dark Oxidized Satin Bronze, Oil Rubbed
  • 616 Satin Bronze, Blackened, Satin Relieved, Clear Coated
  • 619 Satin Nickel Plated, Clear Coated
  • 620 Satin Nickel Plated, Blackened, Satin Relieved, Clear Coated
  • 622 Satin Black Coated
  • 626 Satin Chrome Plated
  • 625 Bright Chrome Plated

  • Government & Military Facilities
  • Hospitality
  • Hospitals Health Care Facilities
  • K-12 Schools
  • Prisons & Detention Facilities
  • Universities & Higher Education

  • LeedBHMA
